Manufacturing :- All Type Of Road & Building Construction Equipments.

Services

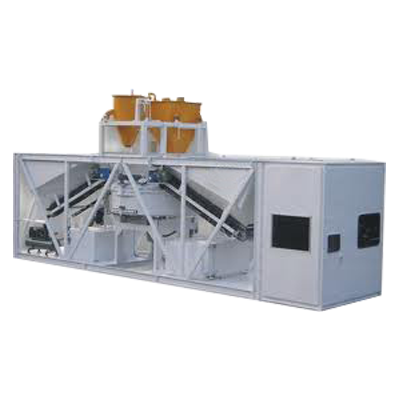

Concrete Baching Plant( Static & Mobile)


1 1 1
Salient Features
Available in 20/25/30 m3/hr. capacity
Mixer PAN type, for continuous mixing.
Replaceable liner Tiles and Tips in to the mixer.
Inbuilt Water and Additive tank.
Fully Automatic plant with Electronic weighing of aggregate/sand/water/cement.
Loading of aggregates / sand Hoppers by wheel loader / conveyor manually.
Civil Foundation work is not required as fully containerized plant.
Easy transportation & shifting.
Compact and Economical design.
Easy installation and put into operation.
Remarkably cost efficient.
Plant operation is very silent, in a clean surrounding.
Least maintenance of plant, due to less wear & tear of parts.
Optionals
Online Printing System.
Discharge Belt Conveyor.
Fly Ash Feeding System.
Cement Storage Silo.
Computer SCADA System with Software.
Touch Screen with provision of USB for data back up.
Technical Specification
Description Unit Masm - 20 Masm - 25 Masm - 30
Output Capacity m3/hr. 20 25 30
Volume (Gross/Net) Ltr. 1000/600 1200/800 1400/1000
Mixer Motor KW 18.5 22 30
Aggregate Hopper Capacity Each m3 2.5 3.5 4.5
Water Tank Capacity Ltr 500 500 750 x 2
Controls Fully Automatic Fully Automatic Fully Automatic Fully Automatic
Connected Power KW 36 45 53
Weight (Approx) Ton 9 10 11
